Toda High Power Profile Camshafts - K20A

TODA Racing uses the latest design and manufacturing technologies to produce camshafts. All TODA parts are designed, tested, and manufactured using the IBM CATIA CAD/CAM/CAE system.

TODA High Power camshafts for the K20A engine are available in six different specifications, ranging from mild NA (Spec A2), to full race (Spec F).



High Power Profile Camshaft

• SPEC A2: INT 240(7.4)/297(12.5)/235(7.1) EX 240(7.0)/292(12.0)/235(6.7)
• SPEC A3: INT 245(9.2)/295(13.0)/240(8.7) EX 240(8.9)/ 90(12.5)/235(8.4)
• SPEC C: INT 250(10.5)/300(13.0)/250(10.5) EX 250(10.5)/295(12.5)/250(10.5)
• SPEC D: INT 250(10.5)/305(13.0)/250(10.5) EX 250(10.5)/300(12.5)/250(10.5)
• SPEC E: INT 250(10.5)/310(13.0)/250(10.5) EX 250(10.5)/305(12.5)/250(10.5)
• SPEC F: INT 250(10.5)/315(13.0)/250(10.5) EX 250(10.5) / 310(12.5) / 250(10.5)

Engine applications: JDM K20A, K20A2, K20Z1, K20Z3, JDM K24A, K24A2

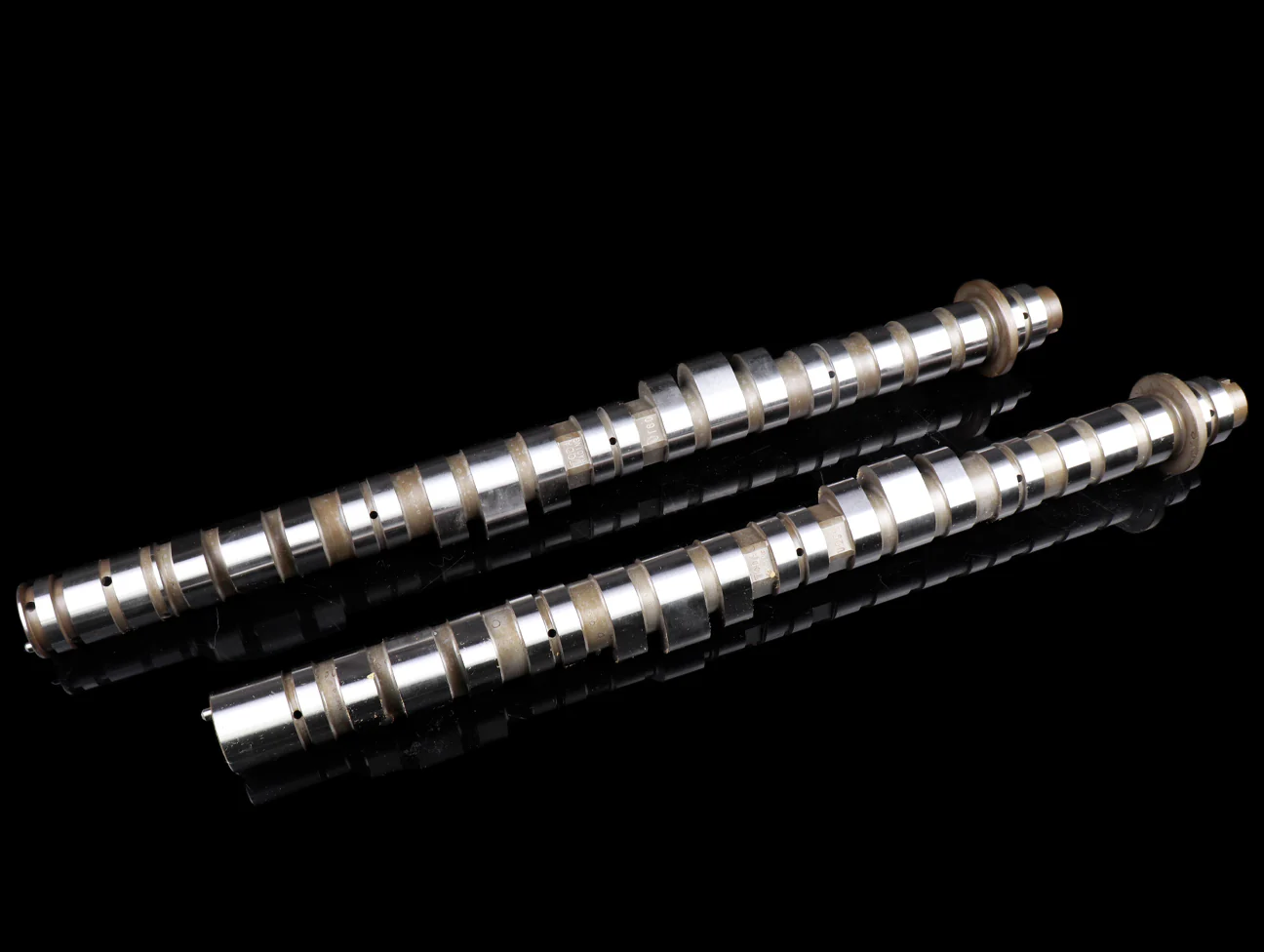

Sold in sets. Images used for illustration purposes.
